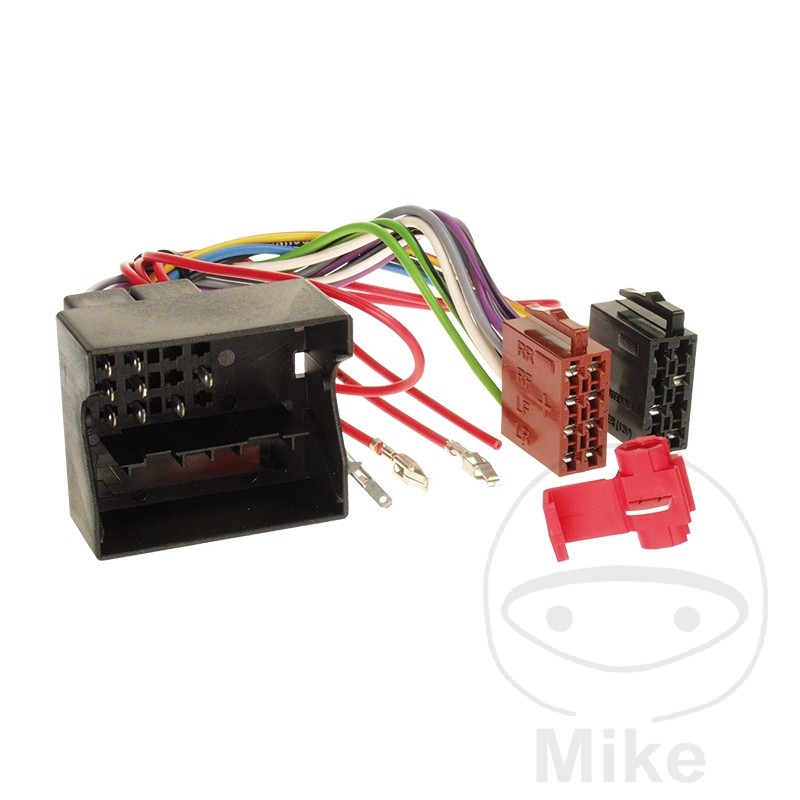

ACV Insulated adapter cable QUADLOCK VAG 1940283

ISO Audi/Seat/Skoda/VW 40Pin Quadlock adapter cable

For application: Radio power/loudspeaker / Quadlock connection cable > ISO

ISO adapter cables are used for the passive connection of retrofit devices to the factory plugs in the installation slot of the radio.

Depending on the vehicle and equipment, the following signals are provided:

12V DC

12V ignition

Land

LIGHT

antenna remote control

Speaker connection for the front and rear speakers

For vehicles with different equipment, missing signals may have to be connected to suitable outlet points in the vehicle (for example, the fuse box) or additional adaptations/interfaces may have to be used:

CAN bus interfaces

LFB interfaces

sound system adapter

camera adapter

The signals must be checked before connection.

Note:

Connection: VAG Quadlock 40-pin connector

Audi / Seat Exeo vehicles with OEM 2-DIN unit

red: +12V ignition current terminal 15 fuse box blown

orange: +12V light / dimmer terminal 58 fuse box with fuse

For the following vehicles:

Audi A1 (8X) 07/2010 - 04/2018*

Audi A3 (8P) 05/2003 - 04/2005**

Audi A3 (8P) 10/2004 - 04/2013**

Audi A4 (B6 (8E) 11/2000 - 10/2005**

Audi A4 (B7 (8E) 11/2004 - 02/2009**

Audi A5 (8T/8F) 06/2007 - 10/2011**

Audi A6 (C5/B4) 05/2001 - 03/2006**

Audi Q3 (8U) 10/2011 - 11/2014**

Audi Q3 (8U) 02/2015 - 06/2018**

Audi Q5 (8R) 09/2008 - 05/2012**

Audi Q5 (8R) 09/2012 - 01/2017**

Audi R8 (42) 04/2007 - 05/2015**

Audi TT (8J) 04/2006 - 04/2010**/****

Audi TT (8J) 08/2010 - 03/2014**/****

SEAT

Seat Alhambra (7N) 10/2010 - 04/2015

Seat Altea (5P) 06/2004 - 03/2009

Seat Altea (5P) 04/2009 - 07/2015

Seat Exeo (3R) 03/2009 - 05/2013**

Seat Ibiza (6J) 06/2008 - 02/2012

Seat Ibiza (6J) 03/2012 - 06/2015

Seat Leon (1P) 09/2005 - 03/2009

Seat Leon (1P) 04-2009 - 11/2012

Seat Mii (AA) 12/2011 - 06/2019***

Seat Toledo (5P) 01/2005 - 10/2009

Seat Toledo (NH) 03/2013 - 05/2015

Skoda

Skoda Citigo (AA) 06/2012 - 05/2017***

Skoda Fabia (5J) 03/2007 - 04/2010

Skoda Fabia (5J) 06/2010 - 06/2014

Skoda Octavia (1Z) 06/2004 - 05/2009

Skoda Octavia (1Z) 01/2009 - 03/2013

Skoda Rapid (NH) 10/2012 - 04/2015

Skoda Roomster (5J) 09/2006 - 02/2015

Skoda Superb (3T) 07/2008 - 05/2013

Skoda Superb (3T) 06/2013 - 05/2015

Skoda Yeti (5L) 08/2009 - 10/2013

GREEN WHITE

VW Amarok (2H) 07/2010 - 08/2016

VW Beetle (16) 11/2011 - 06/2016

VW Caddy III (2K) 10/2003 - 08/2010

VW Caddy III (2K) 092010 - 04/2015

VW Caravelle (7H) 10/2004 - 09/2009***

VW Caravelle (7H) 09/2009 - 05/2015***

VW CC (3C/35) 06/2008 - 11/2011

VW CC (3C/35) 02/2012 - 08/2016

VW Eos (1F) 05/2006 - 10/2010

VW Eos (1F) 10/2010 - 04/2015

VW Fox (5Z) 04/2005 - 06/2011

VW Golf V (1K) 11/2003 - 09/2008

VW Golf V (1KM) 06/2007 - 10/2009

VW Golf V Plus (1KP) 01/2005 - 02/2009

VW Golf VI (1K) 11/2008 - 12/2012

VW Golf VI (1KM) 11/2009 - 04/2013

VW Golf VI (1K) 06/2011 - 2013

VW Golf VI Plus (1KP) 03/2009 - 01/2014

VW Jetta III (1K5/1KM) 09/2005 - 10/2010

VW Jetta IV (162) 01/2011 - 08/2014

VW Multivan (7H) 02/2003 -09/2009***

VW Multivan (7H) 09/2009 - 05/2015**

VW Passat B6 (3C2) 11/2005 - 07/2010

VW Passat B6 (3C5) 08/2005 - 07/2010

VW Passat B7 (3C/362) 11/2010 - 10/2014

VW Phaeton (3D) 05/2007 - 05/2010

VW Polo IV (9N) 03/2005 - 03/2009

VW Polo V (6R) 06/2009 - 01/2014

VW Scirocco III (13) 08/2008 - 04/2014

VW Sharan II (7N) 08/2010 - 04/2015

VW T5 Transporter (7H) 08/2003 - 09/2009***

VW T5 Transporter (7H) 09/2009 - 05/2015***

VW T6 (7HC) 07/2015 - 08/2019*

VW Tiguan I (5N) 10/2007 - 02/2011

VW Tiguan I (5N) 06/2011 - 04/2016

VW Touareg I (7L) 06/2003 - 11/2006***

VW Touareg I (7L) 11/2006 - 02/2010***

VW Touran (1T) 01/2003 - 09/2006

VW Touran (1T) 11/2006 - 04/2010

VW Touran (1T) 08/2010 - 04/2015

VW UP! (AA) 12/2011 - 06/2016***

References:

*Vehicles with OEM Chorus unit with monochrome display

**Vehicles with OEM sound system > item: 13-1424-26

***Vehicles without OEM sound system

****Vehicles without OEM sound system CAN Activation
