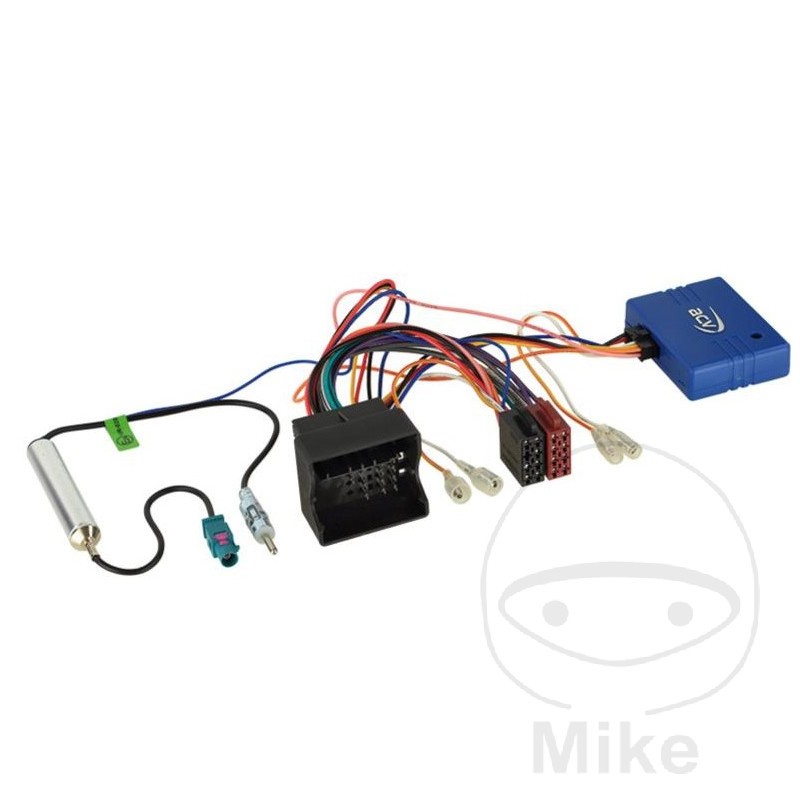

ACV Adapter cable CAN-BUS VAG QUADLOCK-ISO/ANTEN DIN 1940213

CAN Bus Kit VAG 40Pin Quadlock>ISO/Fakra Antenna>DIN

If the factory installed OEM radio is to be replaced by an aftermarket radio in a CAN bus controlled vehicle, a specific CAN bus adapter is required.

Specific and universal CAN bus adapters convert the relevant digital data from the vehicle-specific data bus into analog signals.

Depending on the adapter, various signals or convenience functions, such as ignition plus, lighting, reversing signal or even a speed signal, are read out and made available in analogue form for various retrofit solutions.

Note:

Looking for

Connection: 40 Pin Quadlock

Connection: Fakra > Fakra phantom power > DIN

Outputs: 1A max. loadable

Audi vehicles with OEM 2-DIN unit

Audi A1 vehicles with Chorus OEM unit with monochrome display

Audi cars with OEM sound system > additional item: 13-1424-25

Seat Cars Exeo with OEM Sound System > additional item: 13-1424-25

VW Cars T5 / Touareg with OEM sound system > additional item: 13-1424-26

VW Cars Crafter / Mercedes Sprinter > Item: 194 07 03

Suitable for the following vehicles:

AUDI

A1 2010 - 2019*

A3 2003 - 2013

A4 2000 - 2009

A5 2007 - 2010

R8 2007 - 2015

Q5 2008 - 2016

TT 2006 - 2014****

SEAT

Alhambra 2010 - 2015

Altea 2004 - 2015

Exeo 2008 - 2013

Ibiza 2008 - 2015

Leon 2005 - 2012

Mii 2011 - 2016***

Toledo 2005 - 2016

Skoda

Citigo 2011 - 2016***

Octavia II 2003 - 2013

Swift 2012 - 2015

Roomster 2006 - 2015

Excellent 2008 - 2015

Fabia 2007 - 2014

Yetis 2009 - 2014

GREEN WHITE

Amarok 2010 - 2016

Beetle 2011 - 2016

Caddies 2003 - 2014

Caravelle 2003 - 2015

CC 2010 - 2014

EOS 2006 - 2012

Fox 2005 - 2015 201

Golf 2003 - 2013

Jetta 2005 - 2015

Multivan 2003 -2015

Passat 2005 - 2014

Pole 2005 - 2014

Phaeton (D1) 2007 - 2010

Scirocco 2008 - 2014

Sharan 2010 - 2014

T5 2003 - 2015

Q6 2015 - 2019*/**

Tiguan (5N) 2007 - 2016

Touran 2003 - 2015

Touareg 2003 - 2010

UNTIL 2011 - 2016***

The following signals are provided:

IGNITION

Turning on

reverse

speed pulse

Guarantees:

* Vehicles with OEM Concert unit with color monitor dash > item 12-1328-46-15.

** Vehicles without MIB PQ platform

*** Vehicles without OEM sound system

**** OEM sound system CAN activation
