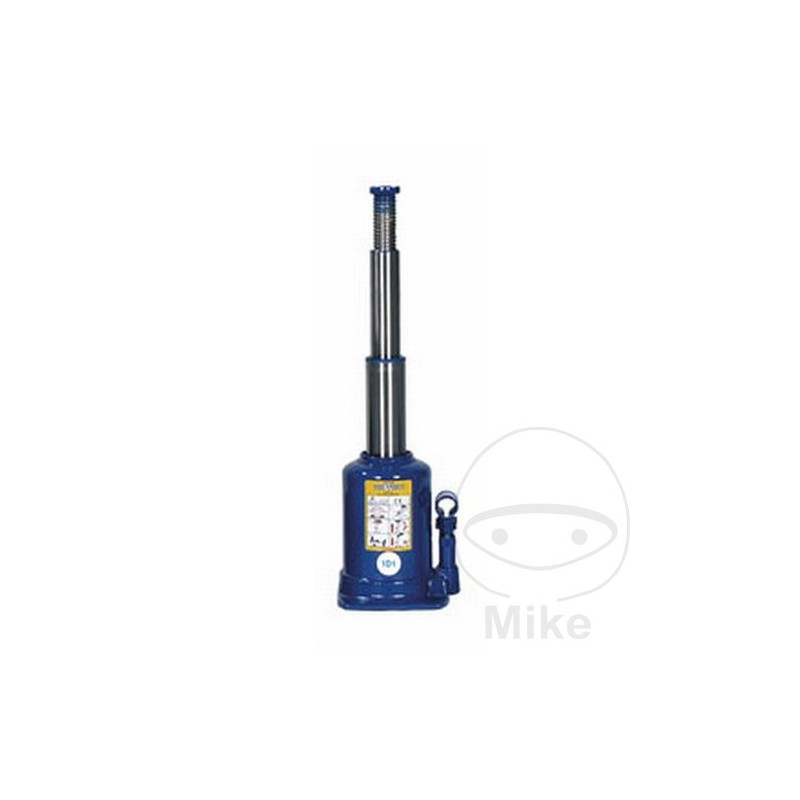

AC HYDRAULIC maneuvering jack ATG 10-200 6630362

Hydraulic jacks 10,000 kg

with two pistons and a high stroke height. telescope model.

crowned bomb casing

Security valve

horizontal use

lockable pump lever

Bracket cover, lever bracket

Temperature range from -20 ° C to 70 ° C

Compliance with various standards

Test BWB technical requirements

Technical specifications:

Load capacity: 10,000 kg

Construction height: 200 mm

Axis Fit: 68

Hydraulic stroke: 262mm

Overall height: 530mm

Lid: 43mm

Support area: 164 x 160mm

Weight: 8.8Kg
