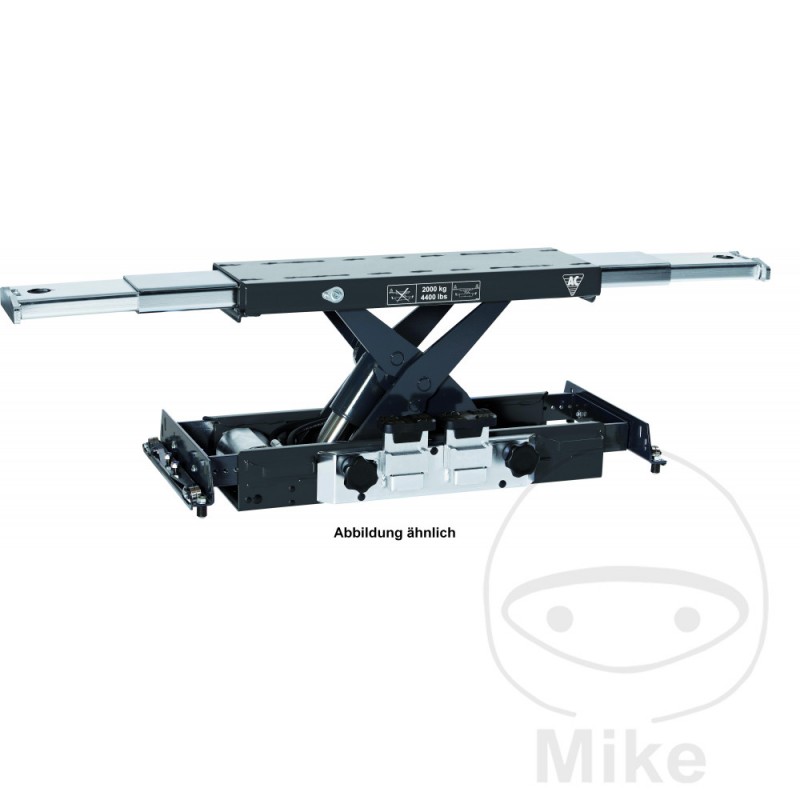

AC HYDRAULIC Approved scissor jack 2600 KG RAL 7016 674.28.03

AC Scissor Jack SD26PHL

A specific connection for the elevator is required (optional)

Pneumatic scissor jack for cars and vans

Quick and efficient lifting thanks to a durable and silent air-hydraulic pump

Low overall height of 180mm and slim design

Maximum scissor width of 1610 mm to facilitate access to collection points: allows reaching the entire width of the vehicle up to the threshold area

Unique height-adjustable suspension system: universally applicable to all track lifts or workshop pits

Maximum safety thanks to two-hand deadman control, ratchet lock, 4-position safety automatic stop device and overload safety valve

Includes 3 sets of extensions (10 / 40 / 85 mm) with 2 rubber pads

Technical data

Capacity: 2.6 t

Piston stroke: 250mm

Minimum height: 180mm

Telescopic arms: 780 - 1610 mm

Width (+ suspension): 780 - 1180 mm

Lift frame (HxW): 120 x 249 mm

Operating pressure: 8.5 - 12 bar

Minimum air consumption: 400-700 l/min

Weight (+ suspension): 110 kg

Colour: RAL 7016
