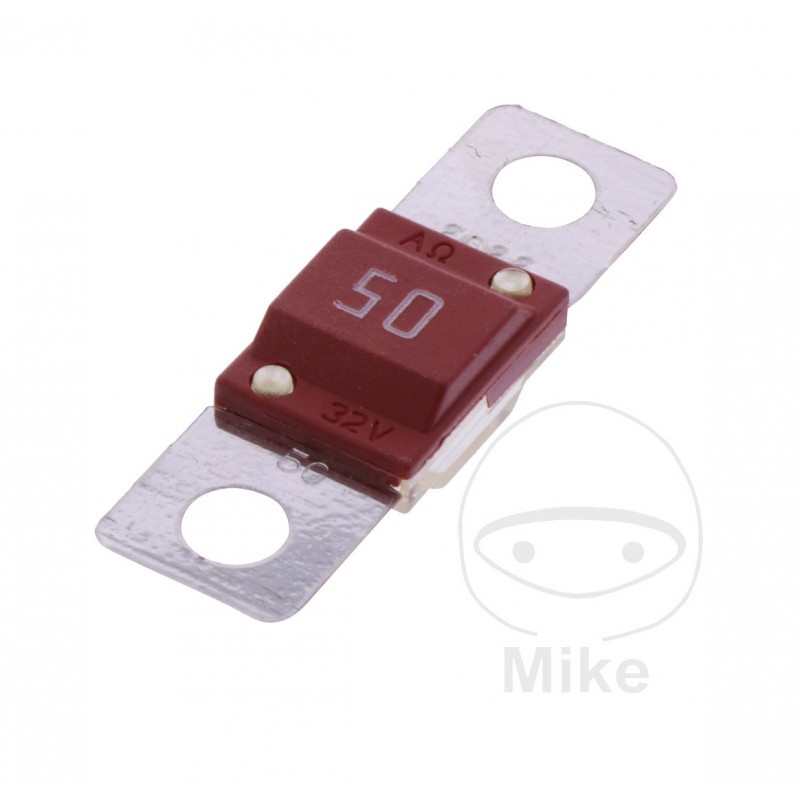

JMP Pack of 5 mini flat fuses 50A 1490145

MIDI fuses with screw connection

Transparent housing on one side for visual inspection

Housing material: PA66 and PSU, chemical resistant

Tinned copper contacts

ISO 8820-5

Rated current: 50A

Voltage up to: 32 V

Connection thread Ø: M5

DISTANCE BETWEEN PINS: 30 MM

Tightening torque: 4.5Nm ± 1Nm

Red color
STYLE: SCHRAUBSICHERUNG
TYPE: MIDI
ABMESSUNG: 42 X 12
NENNSPANNUNG: 32 V
STROMSTÄRKE: 50 A
HOLES DISTANCE: 30 MM
HOLE DIAMETER: 5.5MM
AUTOMAT: NO
STYLE: THREADED FUSE
DIMENSIONS: 42 X 12
Amperage: 50A
DIMENSIONS: 42 X 12 MM
