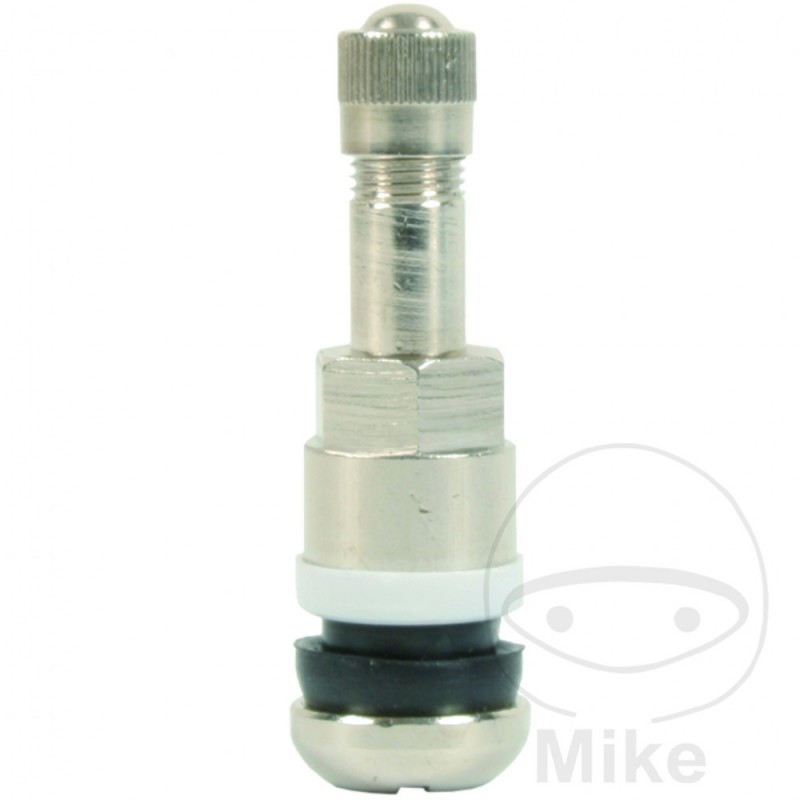

Metal car tire valve 40MS ASC HT 519.02.75

Quickfit 42MS metal valve, TR525, for steel and aluminum rims.

With the REINHEIMER QF sealing concept, the clamping forces are introduced directly into the metal of the rim.

The seal can fulfill its mission without being affected by external forces.

As a special feature, the valve has an internal hexagon in the foot, with which the valve can be easily fixed during assembly.

This reliably prevents damage to the foot seal due to accidental rotation of the valve stem.

The KST disc is firmly pre-mounted, the sleeve can be slipped over the metal valve cover.

The valve base is manufactured according to ETRTO.

After the manufacturing process, the function and tightness of the valve is checked.

The advantages at a glance:

* It is not necessary to remove the valve cover for assembly.

* The KST joint is firmly attached to the sleeve, it cannot fall off.

* Guarantees a high level of safety even at high air pressures

* Constant tightness throughout the life of the valve

* No movement of the valve under centrifugal force

* No loosening of the valve due to aging of the sealing rubber

* Guaranteed tightness even in poor valve hole environments

Area of application:

Tires for passenger cars, SUVs and vans that are within the range of the specified technical data.

Technical data:

Material: brass, high-gloss chrome-plated nickel-plated

Width of the planes: 12mm

For rim hole: 11.3mm

Length: 42mm

Maximum working pressure: 20bar

Maximum tightening torque: 4-6Nm

Maximum speed: no speed limit
