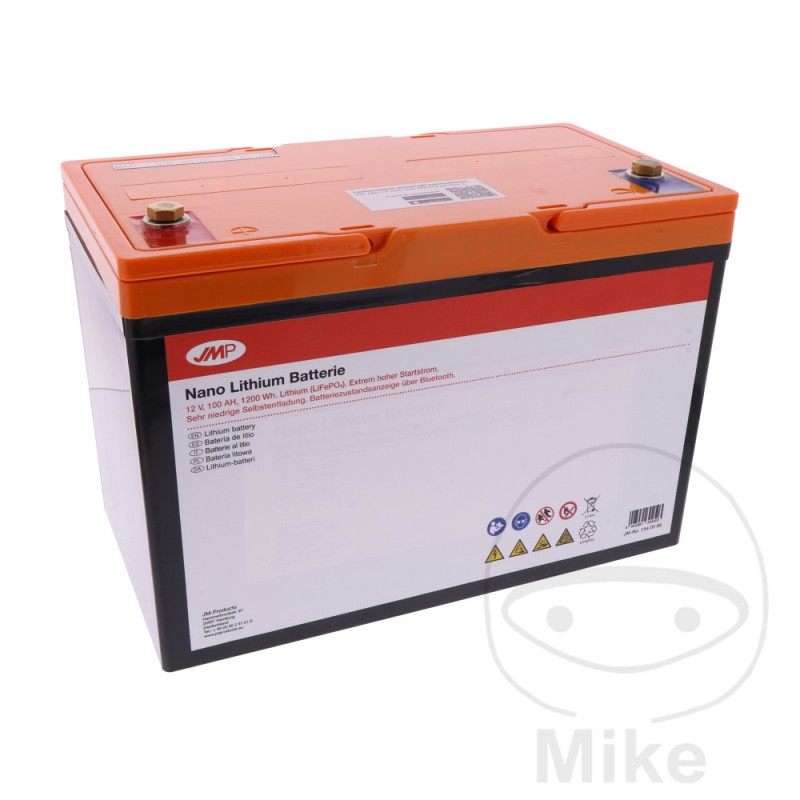

JMP Lithium Ion Supply Battery

The JMP power battery with a capacity of 100Ah is ideal for your motorhome.

Thanks to the latest lithium battery technology (LiFePo4), the battery offers greater safety, has high cycle stability and very low self-discharge, i.e. long service life and low running costs.

Its weight is extremely light: up to 50% lighter than a conventional battery.

The integrated Battery Management System (BMS) constantly monitors the status of each cell and protects it against overcharging, overvoltage and overtemperature.

In this way, premature failure of the battery due to environmental influences or incorrect use is prevented in advance.

Battery and charge status can be permanently monitored via Bluetooth (in conjunction with the optional JMP Battery Monitor II and via an app that can be downloaded for free from Google Play or the Apple Store).

Technical data:

VOLTAGE: 12V

Capacity: 100Ah

Energy content: 1280 Wh

Length: 307mm

WIDTH: 166MM

HEIGHT: 207MM

Cell Technology: LiFePO4 Lithium Ion Nanophosphate

Cell type: lithium polymer

Application: 12V installation, motorhome, solar

Rated voltage: 12.8V

End of charge voltage: 15.2 +/- 0.05V

Maximum charging current: 50A / 0.5C

Maximum continuous charging current: 50A / 0.5C

Continuous discharge current: STANDARD 5A , Max 100A

Maximum discharge current (3-5 sec.): 300A

End of discharge voltage: 9.6 V

Temperature range (discharge): -10~60 degrees

Temperature range (charge): 0~45 degrees

Temperature range (storage): -10~40 degrees

Battery Management System (BMS): YES

Balancer: YES

WEIGHT: 12KG

Application Serial connection: YES, 24V, 36V and max. 48V possible

Please note that batteries must be fully charged before connection.

Application Parallel connection: YES, 200A, 300A and max. 400A possible

Please note that batteries must be fully charged before connection.
BATTERY TYPE: VERSORGUNGSBATTERIE
VEHICLE TYPE: BOOTE UND YACHTEN
VOLTAGE: 12 VOLT
CAPACITY: 100 AH
ENERGY CAPACITY: 1280 WH
COLD CURRENT (IN): 300 A
TECHNOLOGY: LITHIUM
POLE ARRANGEMENT (CIRCUIT): 1 (+ LEFT FRONT - RIGHT FRONT)
Length: 307mm
