NOCO Battery charger GENIUS10 EU 6/12 V 10 A 609.03.18

NOCO Genius10 battery charger

Suitable for 6 + 12 volt batteries

Battery types: Wet, Gel, Maintenance Free, AC, EFB, AGM, and Lithium-Ion

It can be used for cars, motorcycles, motor homes, boats, lawn mowers, tractors, trucks, etc.

Charging batteries with a capacity of up to 230 Ah

The integrated temperature sensor measures the ambient temperature and regulates the charging process.

Overcharge protection: the device can remain permanently connected to the battery

reverse polarity protection

slow charge

Force Mode - Charges deeply discharged batteries from just 1V

Repair Mode: Sulfated Battery Recovery Mode

Standby operation: Serves as a power source to maintain vehicle storage when batteries are changed, for example

The battery terminals have removable grommets for permanent mounting on the battery.

Technical specifications:

Charging voltage: 6V, 12V

Charge current: 10A (6V), 10A (12V)

Battery capacity: up to 230 Ah (12V)

Low voltage detection: 1V (6V), 1V (12V)

Back discharge current: <0.5 ma

Ambient temperature: -20 ° C to + 40 ° C

Battery Chemicals: Flooded, Gel, Maintenance Free, AC, EFB, AGM, and Lithium-Ion Batteries

Housing protection: IP65

Cooling: natural convection

Dimensions (LxWxH): 180x91x58mm

Power cable length: 1,820 mm.

Charging cable length: 1,970 mm.

Weight: 1.51kg

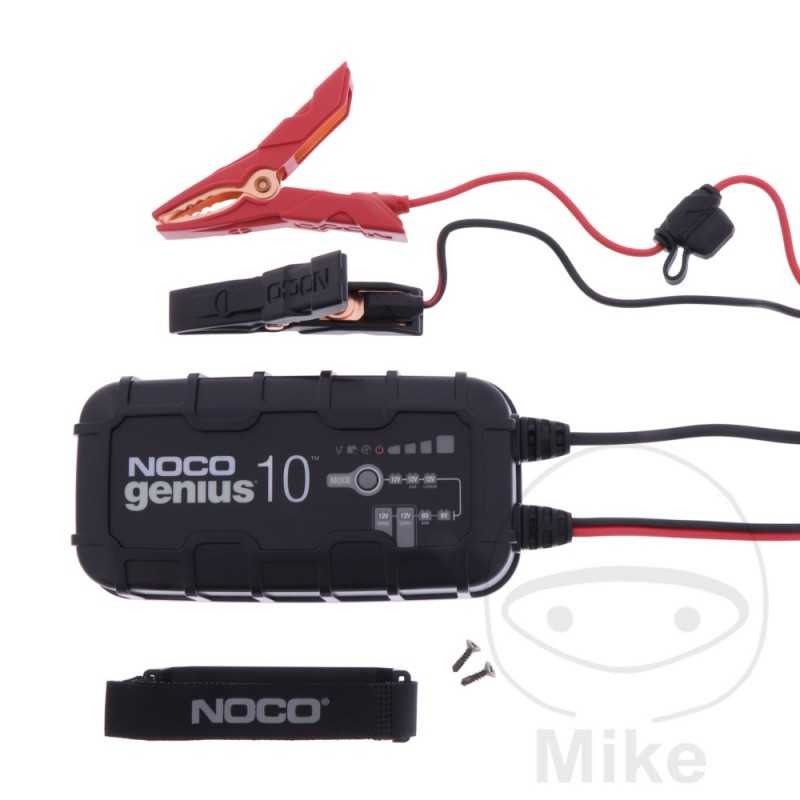

Delivery scope:

genius10 battery charger

Load clips with built-in eyelets

mounting bracket with straps

User's guide

Approximate charging times:

Battery size 6V 12V

20Ah 1.5h 1.5h

40Ah 3.0h 3.0h

80Ah 6.0h 6.0h

100 Ah 7.0h 7.0h

230Ah 17.5h 17.5h
