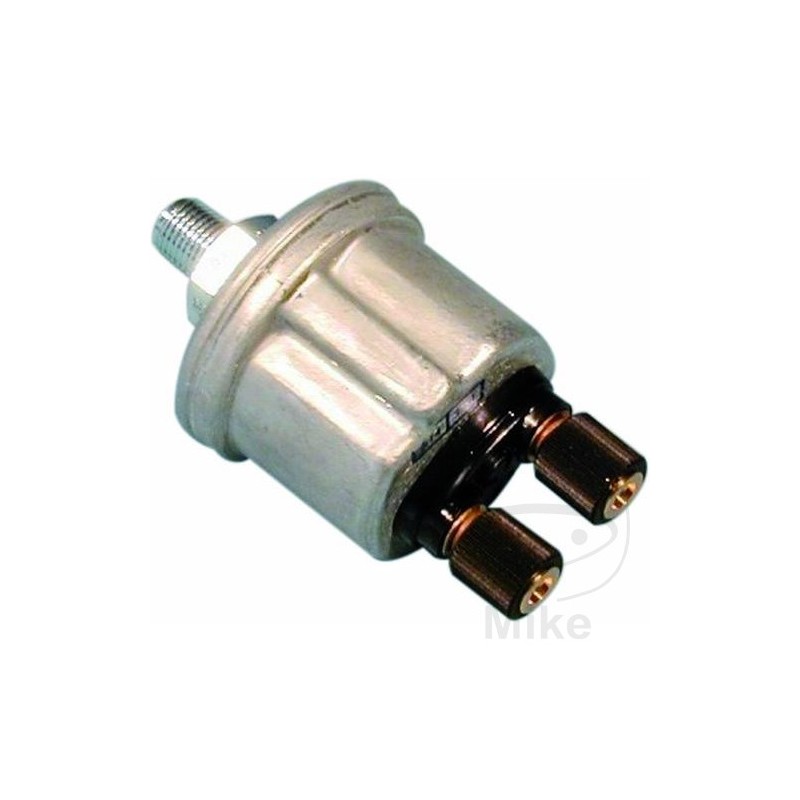

VDO pressure sender
with warning contacts, common ground. For gas or liquid pressure measurement in connection with an electrical display device. These electromechanical pressure transducers, the electrical resistance of 10-184 ohms changes depending on the pressure. The warning contact closes with the drop in pressure.
Measuring range: 10 bar
Signal contact / switching point: 0.5 bar ± 0.15 bar
Thread: M10 x 1 short taper
Length, L1: 19.5mm
Length L2: 11.0mm
Connection: 2 M4 knurled nut
Voltage: 6V to 24V
With pressure limit: max. 30 bar or 50 bar (short time of 2 seconds)
Warning contact: closes on pressure drop
Alarm contact switching capacity: max. 5W noninductively
Operating temperature: -25 ° C to 100 ° C (. To 120 ° C max for accessories 1 hour)
Yield: 10? at 184?
