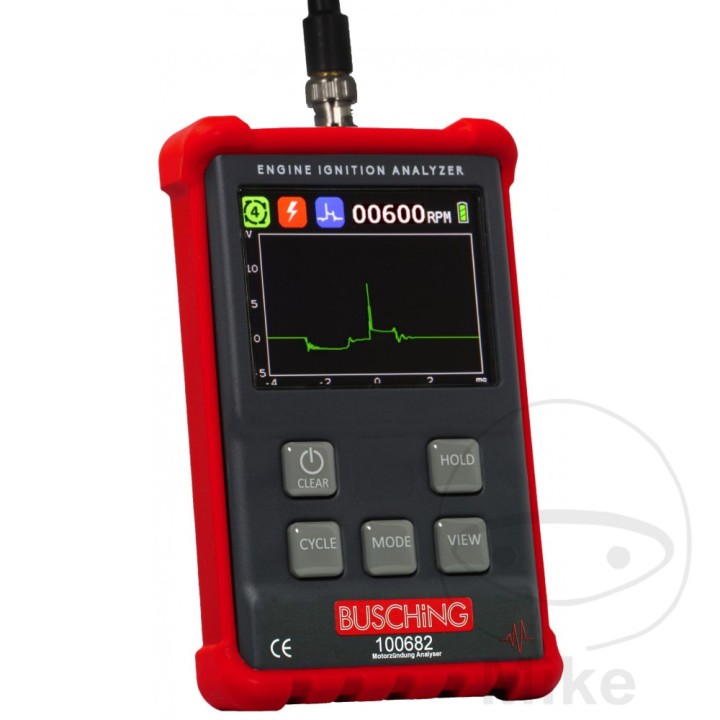

BUSCHING digital ignition oscilloscope 609.06.83

digital ignition oscilloscope

This portable tester is suitable for diagnosing and measuring various ignition systems.

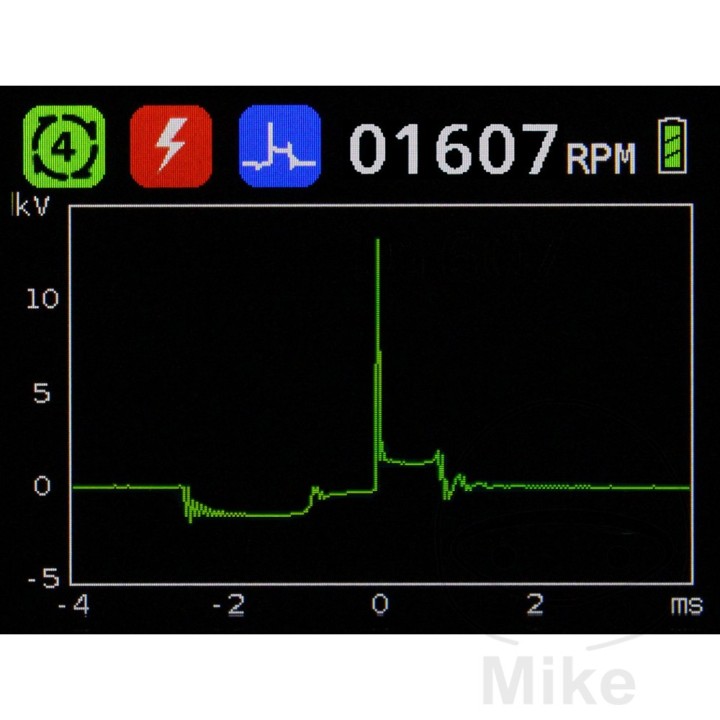

The device automatically detects the measurement signals and sets all the parameters so that a fast and reliable diagnosis can be made in seconds and all the necessary information can be viewed on the screen.

The power supply of the device is guaranteed by a rechargeable battery (LiFePO4 battery) for up to 8 hours.

The device is used, for example, to diagnose interruptions in the high voltage circuit, lack of cylinder compression, dirty spark plugs / contact resistance and faulty primary or secondary windings.

Technical specifications:

Display: 3.5" color TFT (320 x 240 pixels) with backlight

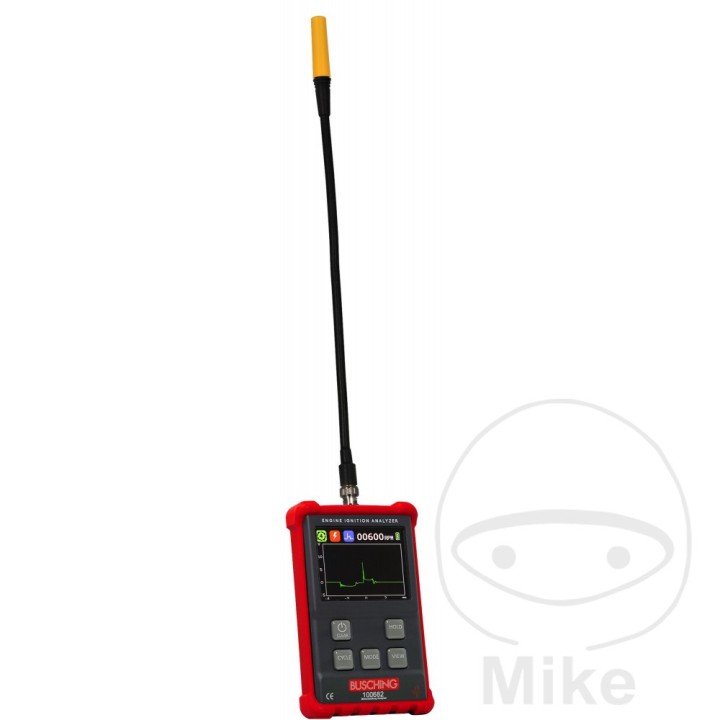

Probe: 30 cm long with interchangeable COP and SPW measuring tips

Dimensions: 165 x 124 x 36 mm (without probe)

Weight: 420 g (without probe)

RPM measurement:

Range: 120 to 19,999 RPM

Resolution: 1rpm

Accuracy: ±0.5% + 1 LSD

Ignition voltage:

Range: 0 to 50 kV

Resolution: 0.1kV

Repeatability: ±0.2kV

Spark Duration:

Range: 0 to 10.0ms

Resolution: 0.1ms

Accuracy: ±0.1ms + 1 LSD

Primary current start time (COP mode):

Range: 0 to 10.0ms

Resolution: 0.1ms

Accuracy: ±0.1ms + 1 LSD

Dwell Time (Ignition Wire):

Range: 0 to 10.0ms

Resolution: 0.1ms

Accuracy: ±0.1ms + 1 LSD

Scope of delivery: _

1 x power-on oscilloscope with protective rubber cover

1 x mobile probe

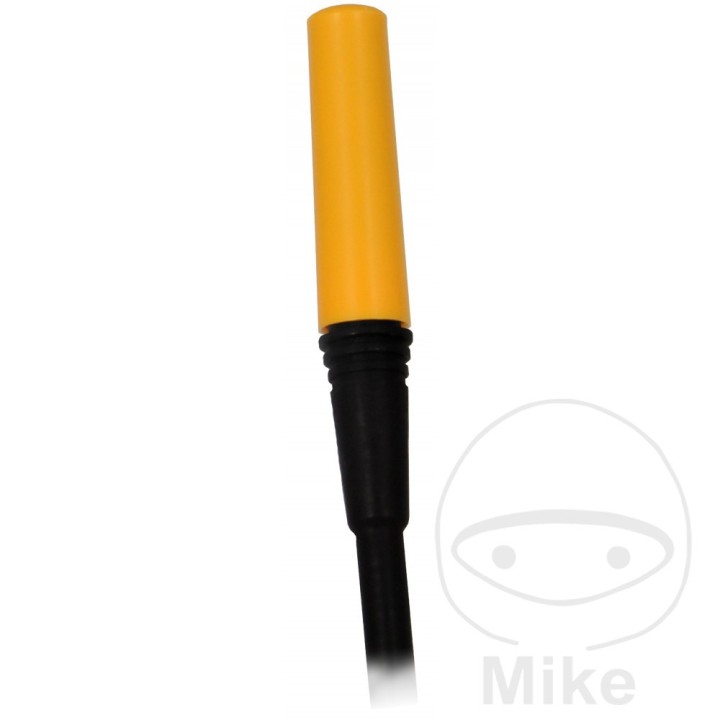

1 x Ignition Coil (COP) Test Tip

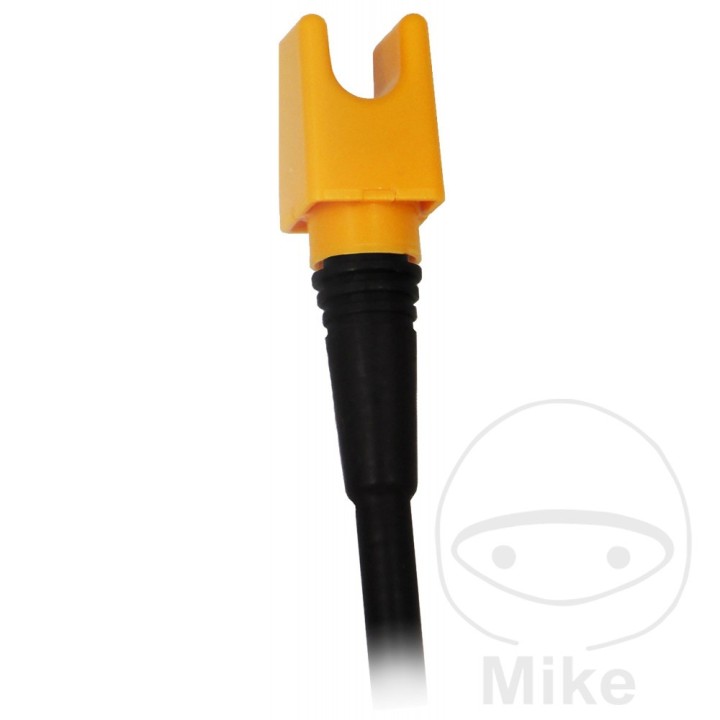

1 x Ignition Wire (SPW) Test Tip

1 x Micro-USB cable

1 x AC charger adapter

1 x hard case
