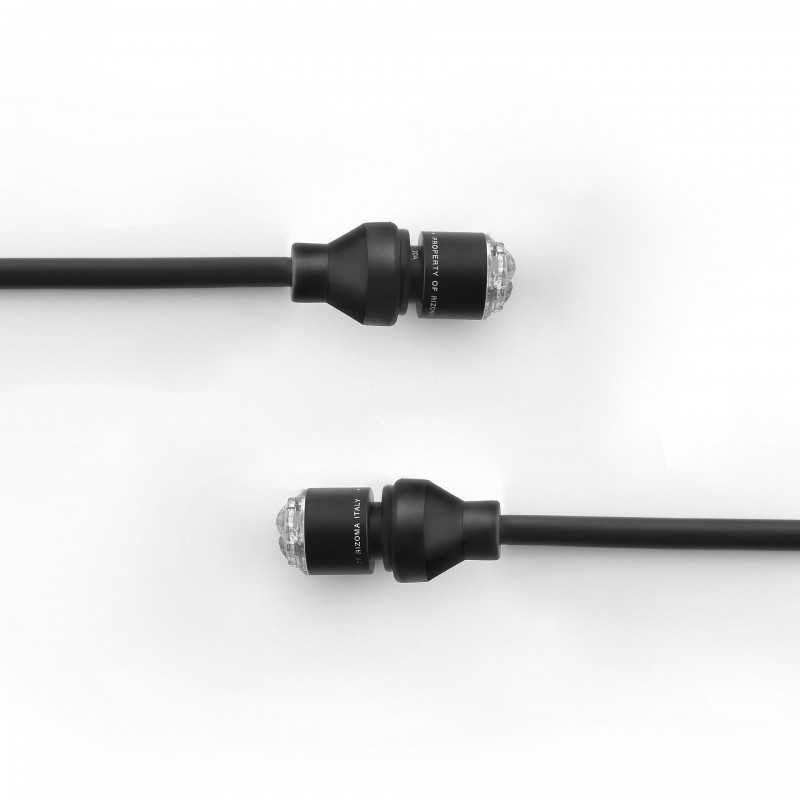

RIZOMA Indicator kit 3 functions UNIT FR075

The Rizoma brand has an exclusive dedication to the research and development of its products, focusing on design, quality and functionality to give each accessory a unique character that makes a difference, giving each motorcycle that aesthetic detail that makes it more personal.
Today Rizoma is a leading brand consolidated worldwide as a manufacturer of high quality accessories and innovative design 100% made in Italy.

INDICATOR, TAILLIGHT AND BRAKE LIGHT. LIGHT UNIT S, thanks to the latest generation SMD LED technology, which integrate three functions, guarantee a high light intensity, making them one of the smallest options in their category, without thereby ceasing to comply with all the requirements. European homologation regulations.

Its innovative conformation allows, even with its small size, optimal functionality. In addition, the beam of light emitted by the Light Units, extends longitudinally, from its same anchor (instead of 90 ° as is usually the case in other indicators), a factor that facilitates and multiplies the installation possibilities.

Therefore, Light Unit represents a new and innovative concept for Rizoma turn signals, a luminous signaling device that can be efficiently installed in multiple configurations according to the specific needs of the user, without sacrificing the aesthetic aspect, factors that enhance the value of your patent.

Technical information:
Equipped with the latest generation SMD LED technology that guarantees compliance with European homologation regulations.

Functions: INDICATOR (12V - 1.1W) / REAR POSITION LIGHT (12V - 0.5W) / BRAKE LIGHT (12V - 0.9W)

THREAD M6 / Tool to tighten the indicator is included.



Rizoma turn signals are supplied with two pairs of resistors (10 W / 15 O each).

For motorcycles equipped with an indicator on the dashboard (only BMW R nine T models from 2017 onwards), to avoid errors, we recommend installing Rizoma EE149H (3 W - 38 O) resistors that completely replace the use of the included resistors with Rizoma indicators, therefore, they should not be used.



The installation of the Light Unit S indicator provides several options.

REAR POSITION

- In OEM configuration with mounting kit for Rizoma rear indicators combined with the FR440B technopolymer bracket.

- Applied to the Rizoma license plate holder, which already includes the mounting kit for rear turn signals, combined with the FR440B technopolymer support (to be purchased separately).

- Using the FR444B biadhesive mounting kit, placing the turn signals in position according to current regulations.

The assembly of the Light Unit S always requires the use of adequate wiring for the installation of the Rizoma indicator on your own motorcycle. The wiring kit is sold separately.



Attention, since the Rizoma multi-function rear turn signals (model S) also fulfill the functions of position light and rear brake light, they can only be installed in cases in which:

- Rizoma has developed a license plate kit with specific wiring, so that this allows the elimination of the original brake light (OEM) by virtue of the installation of the three-function indicators;

- Also, if the bike has multi-function turn signals as standard, Rizoma has created a specific plug&play wiring kit.

For this reason, we always recommend checking the list of products compatible with your motorcycle. In cases where model S indicators are not offered, it means that the possible specific license plate holder is not suitable for the elimination of the original brake light (OEM) or that the substitute wiring for the multi-function indicators is not available.

The wiring kit is required to mount the turn signals.

FAQs:
P: Approvals and certifications

A: Approved product. To be sure if a product is approved, it is sufficient to check if the product has a letter E, immediately followed by a number within a circle.



Q: What are the electrical specifications?

A: Position light 12 V / 0.5 W - Indicator light 12 V / 1.1 W - Brake light 12 V / 0.9 W



Q: What lighting technology do you use?

A: Led SMD technology (Surface-Mounted-Device).



Q: What are the advantages of mounting some Led SMD turn signals?

A: Compared with a normal light bulb, LEDs have a longer life, higher light intensity and take up less space.



Q: Are the resistors included in the package?

A: Yes, 2 resistors (10 W / 15 O each) are included for each flasher.



Q: What does it mean to mount the turn signal resistors in series or in parallel?

A: We speak of a series connection when two or more components are connected in such a way that they form a single path for the electric current that flows through them $$ in the case of electrical components with two terminals (called bipoles), the Series connection requires that the end of each be connected only to the end of the other, the power being supplied through the free terminals of the first and last bipoles. (See diagram 2 of the assembly instructions) -We speak of parallel connection when the components are connected to a pair of conductors so that the electrical voltage is applied to all of them in the same way. To understand it better, let's take an example with some people: they are placed between two stretched and parallel strings, and each person holds each string with one hand so that each person holds with their right hand the same string that everyone else holds with their hand. the right hand and the same goes for the left hand.

(see diagram 3 of the assembly instructions)



Q: I have only mounted two Rizoma turn signals on my motorcycle but they do not blink properly. What can I do to solve the problem?

A: On the motorcycles tested by our R&D department, four turn signals are always fitted (whenever possible). We recommend contacting a specialized workshop or trying to compensate the installation with resistors.



Q: My motorcycle is equipped with LED indicators as standard. Do I have to use resistors if I ride the Rizoma turn signals?

A: No, they are generally not used.




APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW M 1000 RR (2020 - 21) Adaptador montaje: FR440B, EE177H, FR221B 2001>2002
Bmw R 1250 GS (2021) Adaptador montaje: FR221B, FR440B, EE078H, EE177H
Bmw R nine T 1200 (2021) Adaptador montaje: EE078H, EE149H
Bmw S 1000 RR (2019 - 20) Adaptador montaje: FR221B, FR440B, EE177H
Bmw S 1000 RR (2021) Adaptador montaje: FR221B, FR440B, EE177H
Harley-Davidson 107 Breakout (2018 - 19) - FXBR Adaptador montaje: FR440B, FR602BS, EE152H
Harley-Davidson 107 Fat Bob (2017 - 20) - FXFB Adaptador montaje: FR440B, FR602BS, EE152H
Harley-Davidson 107 Fat Boy (2017 - 20) - FLFB Adaptador montaje: FR440B, FR602BS, EE152H
Harley-Davidson 107 Low Rider (2018 - 20) - FXLR Adaptador montaje: FR440B, FR602BS, EE152H
Harley-Davidson 107 Slim (2018 - 20) - FLSL Adaptador montaje: FR440B, FR602BS, EE152H
Harley-Davidson 107 Street Bob (2018 - 20) - FXBB Adaptador montaje: FR440B, FR602BS, EE152H
Harley-Davidson 114 Breakout (2018 - 20) - FXBRS Adaptador montaje: FR440B, FR602BS, EE152H
Harley-Davidson 114 Fat Bob (2018 - 20) - FXFBS Adaptador montaje: FR602BS, FR440B, EE152H
Harley-Davidson 114 Fat Boy (2018 - 20) - FLFBS Adaptador montaje: EE152H, FR440B, FR602BS
KTM 790 Duke (2019) Adaptador montaje: FR440B, FR230B, EE164H
