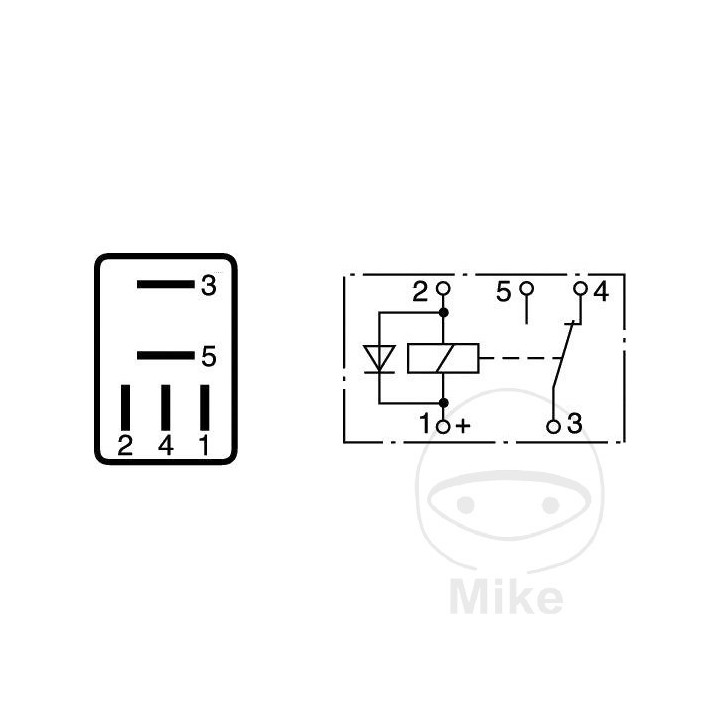

Bosch multifunction relay / shunt relay, 5 poles, 12 V.
Mini relay without bracket
with blocking diode
Closes the circuit between the power source and an electrical consumer.
Application area: main headlights, additional headlights, horns, heaters, fan motors and window lifters, air conditioning and ignition systems, etc.
Technical specifications:
Rated voltage: 12 volts
Rated Current: 20A
Number of poles: 5 poles
Relay function: three-phase generator
Switch function: no cleaning function
Temperature range: -40 to +100 ° C
Protection class for housings and terminals in general: IP 20
Protection degree for sockets with below connector plug installation position: IP 5K4
VOLTAGE: 12V
QUANTITY TERMINALS: 5
SWITCH FUNCTION: MULTIFUNCTION
LOAD CAPACITY: 20A
WITH SUPPORT: YES
Mini relay without bracket
with blocking diode
Closes the circuit between the power source and an electrical consumer.
Application area: main headlights, additional headlights, horns, heaters, fan motors and window lifters, air conditioning and ignition systems, etc.
Technical specifications:
Rated voltage: 12 volts
Rated Current: 20A
Number of poles: 5 poles
Relay function: three-phase generator
Switch function: no cleaning function
Temperature range: -40 to +100 ° C
Protection class for housings and terminals in general: IP 20
Protection degree for sockets with below connector plug installation position: IP 5K4
VOLTAGE: 12V
QUANTITY TERMINALS: 5
SWITCH FUNCTION: MULTIFUNCTION
LOAD CAPACITY: 20A
WITH SUPPORT: YES
- Marca
- SIN MARCA
- Referencia
- 118.00.84
- EAN-13
- 4047024946613
- Peso
- 0.400000 kg
